Appendix
NACA 4-Digit, 5-Digit, and 6-Series Airfoil Data
Shigeo Hayashibara
NACA Airfoil Data

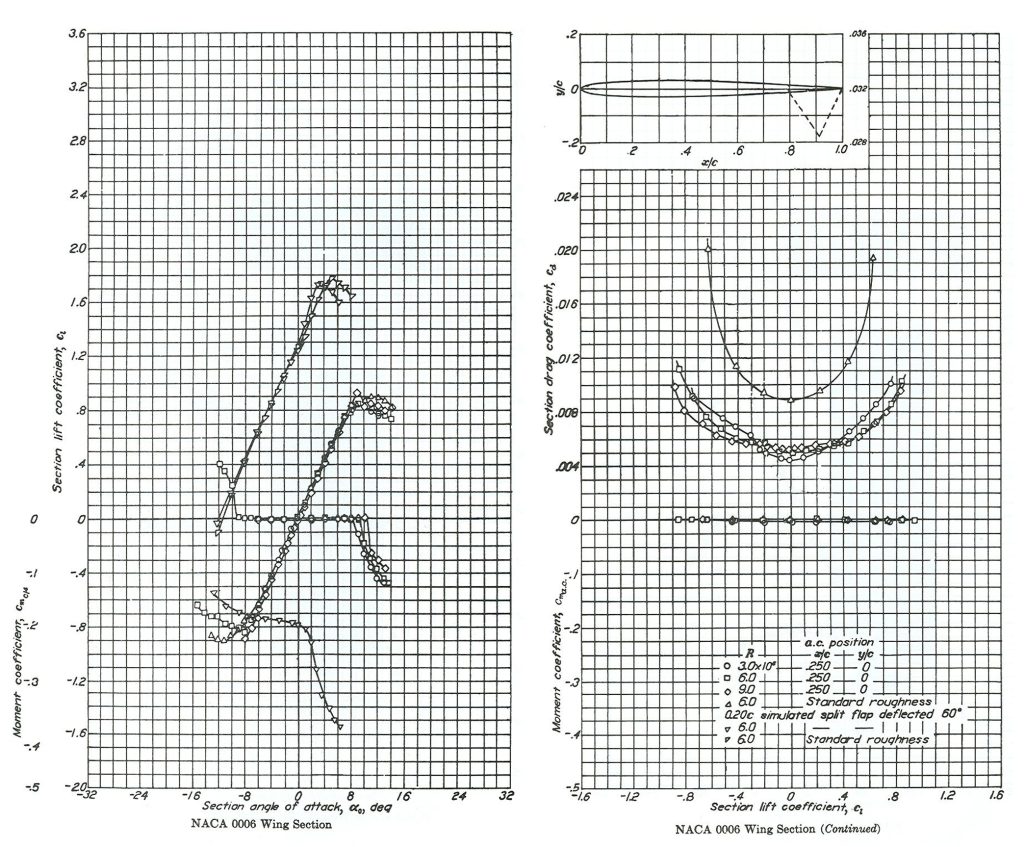

NACA 0006 (4-Digit Series: Symmetric)

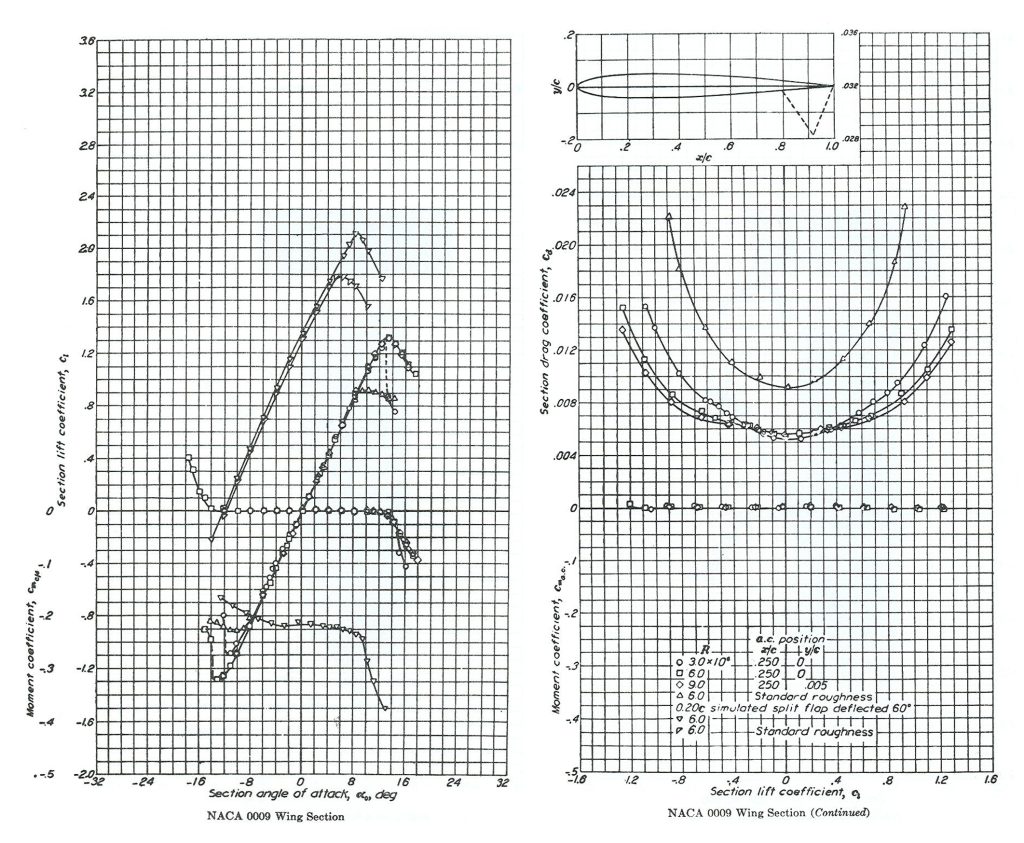

NACA 0009 (4-Digit Series: Symmetric)
NACA 1408 (4-Digit Series: Cambered)

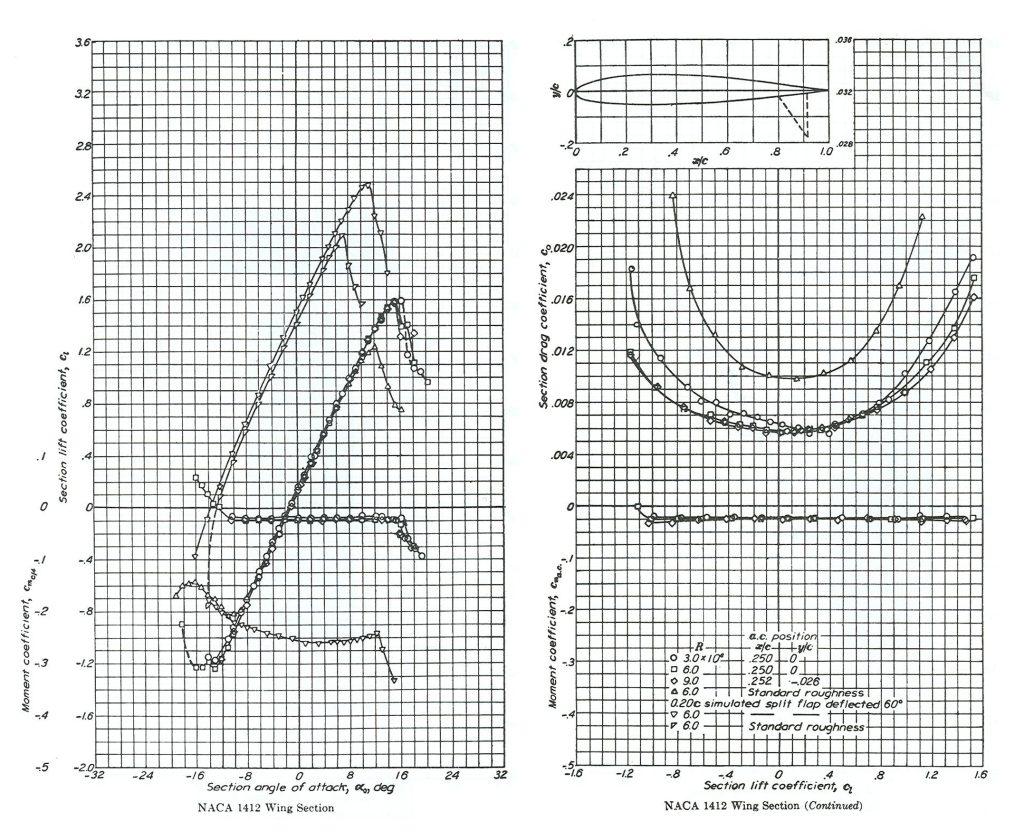

ACA 1412 (4-Digit Series: Cambered)

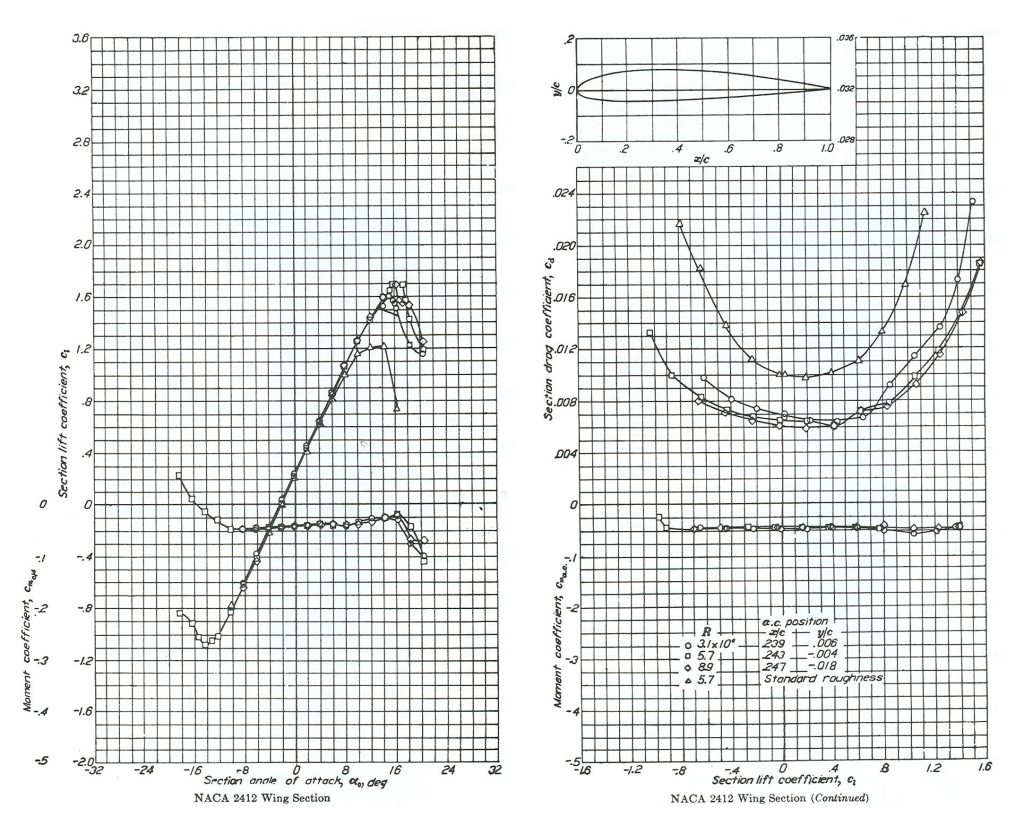

NACA 2412 (4-Digit Series: Cambered)

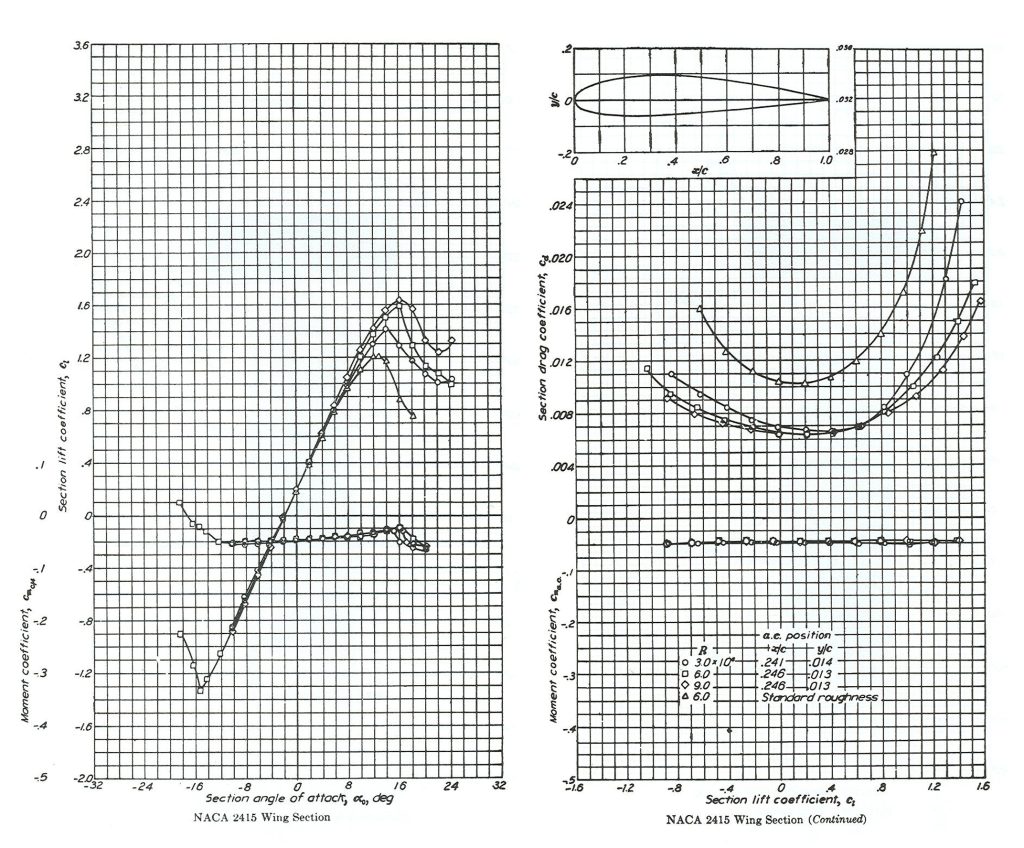

NACA 2415 (4-Digit Series: Cambered)

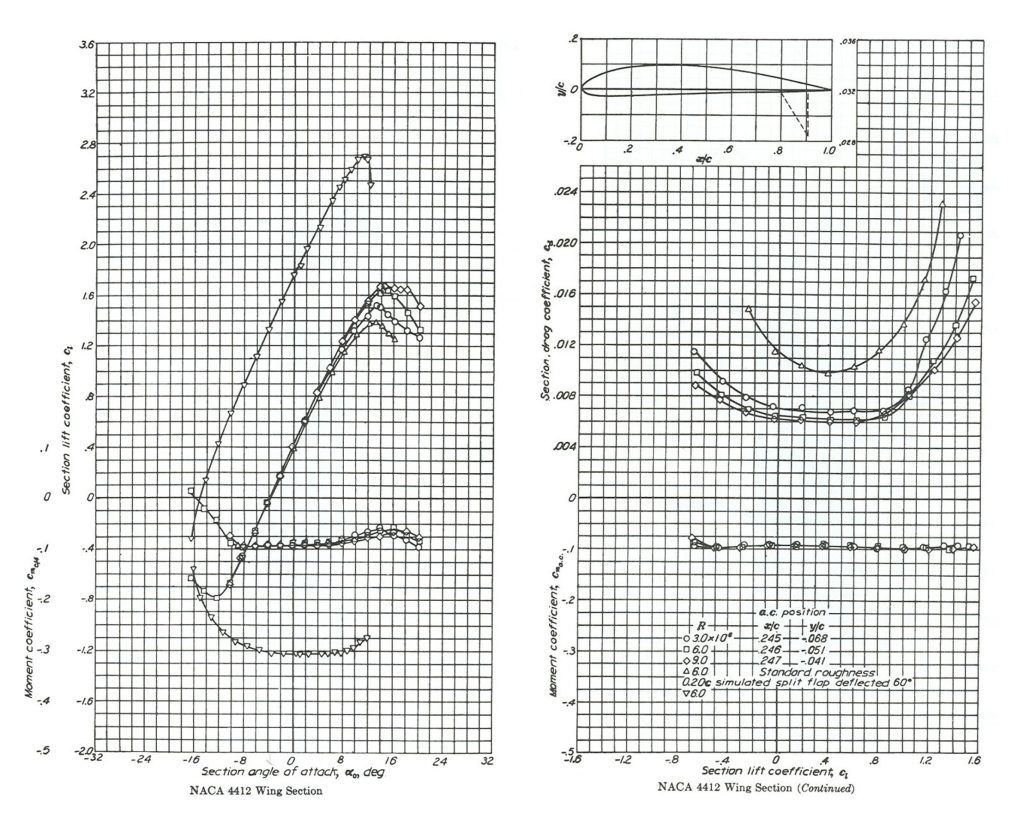

NACA 4412 (4-Digit Series: Cambered)

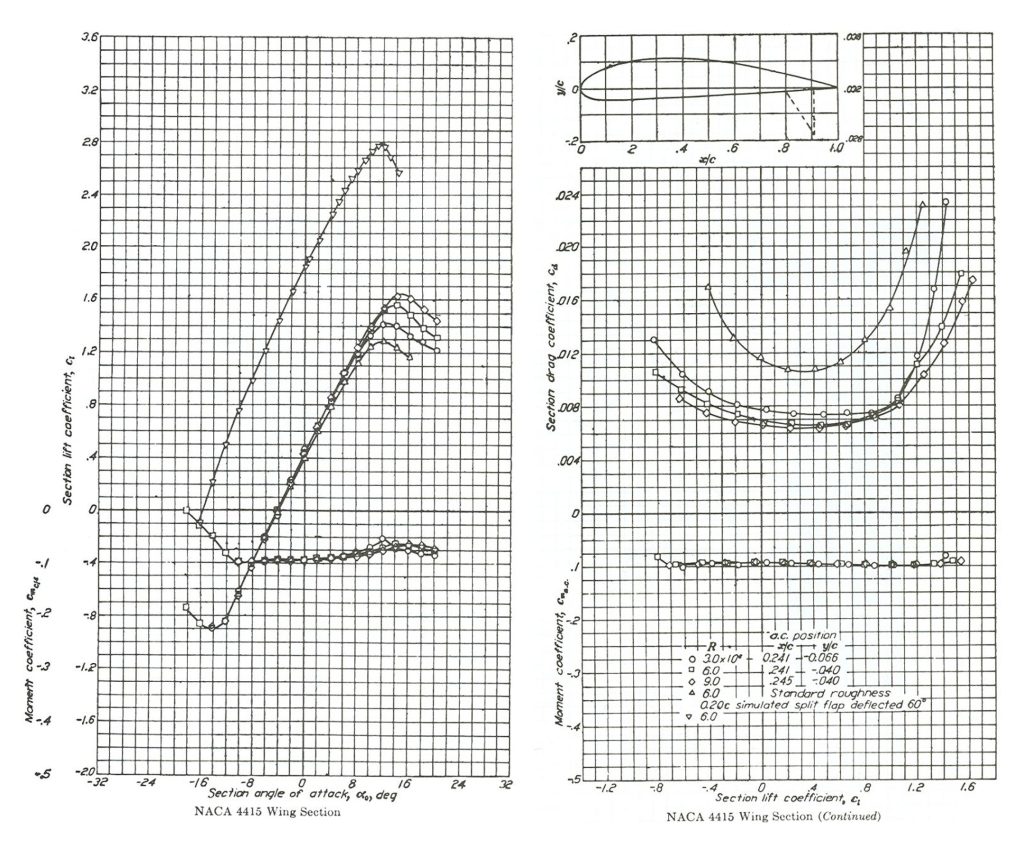

NACA 4415 (4-Digit Series: Cambered)

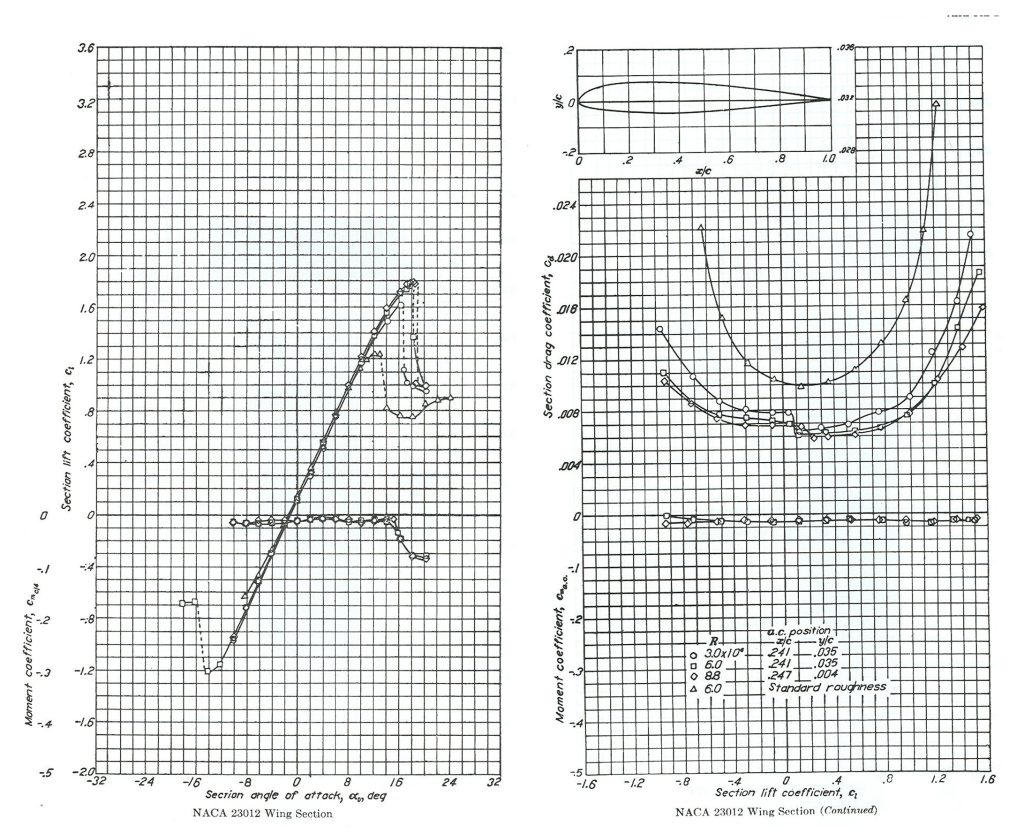

NACA 23012 (5-Digit Series: Cambered)

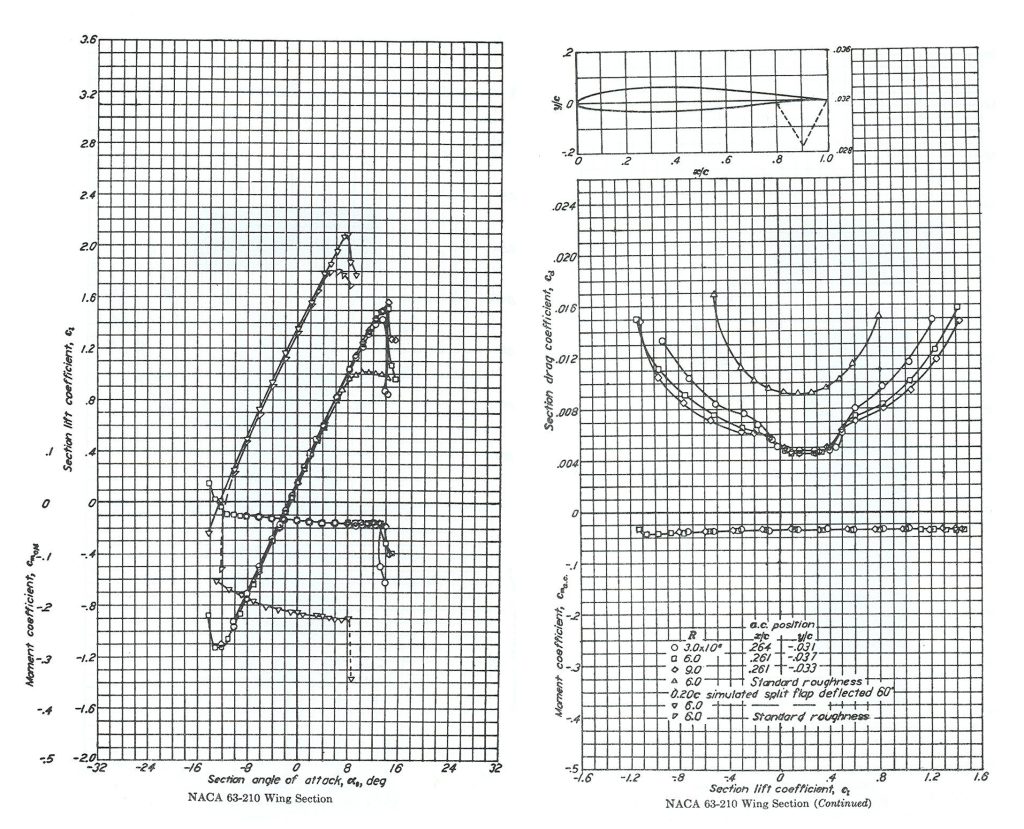

NACA 63-210 (6-Series NLF: Cambered)

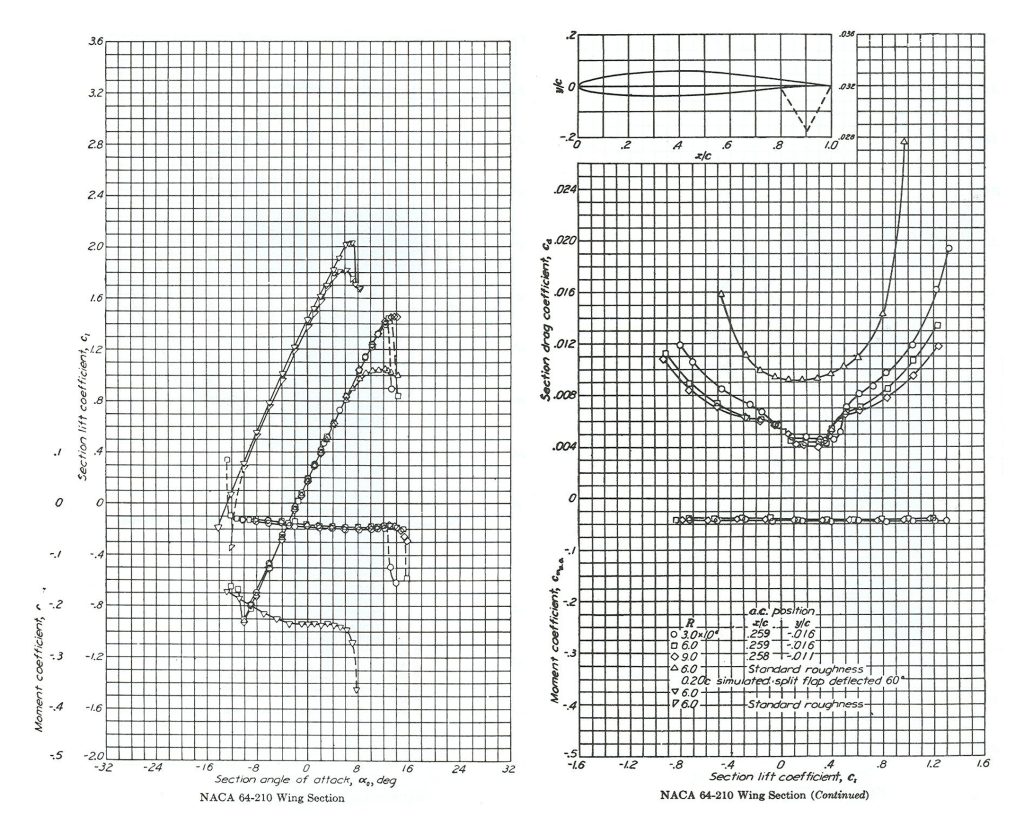

NACA 64-210 (6-Series NLF: Cambered)

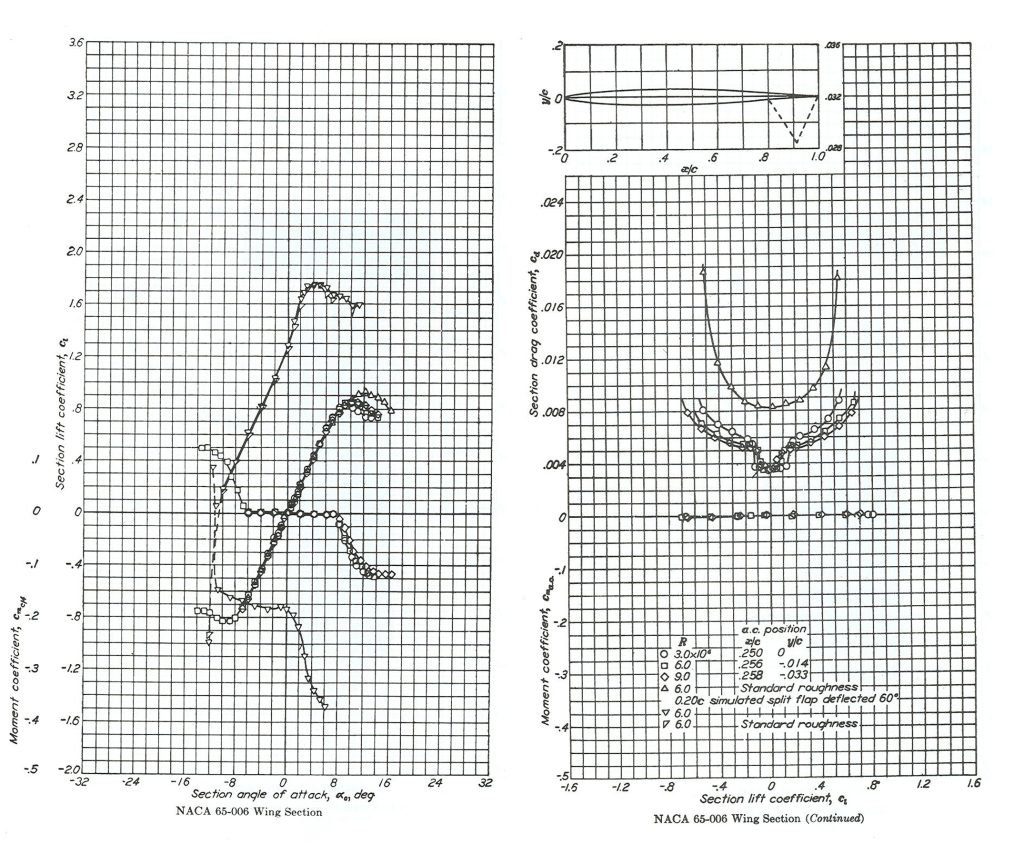

NACA 65-006 (6-Series NLF: Symmetric)

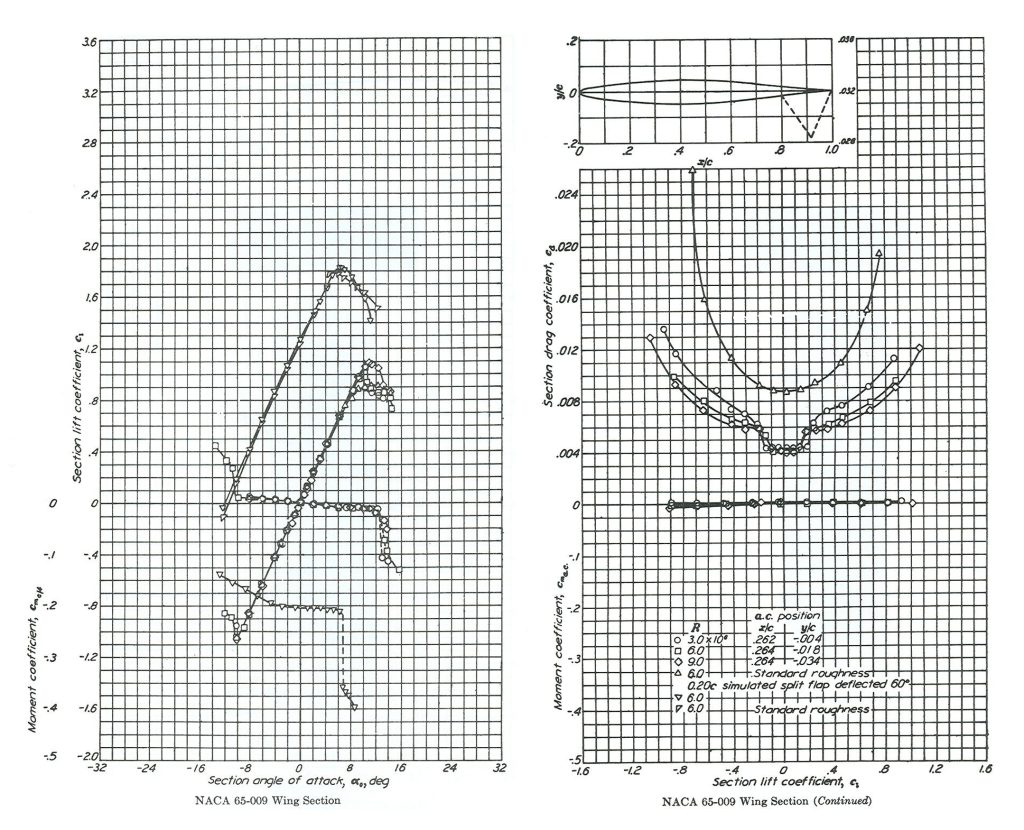

NACA 65-009 (6-Series NLF: Symmetric)

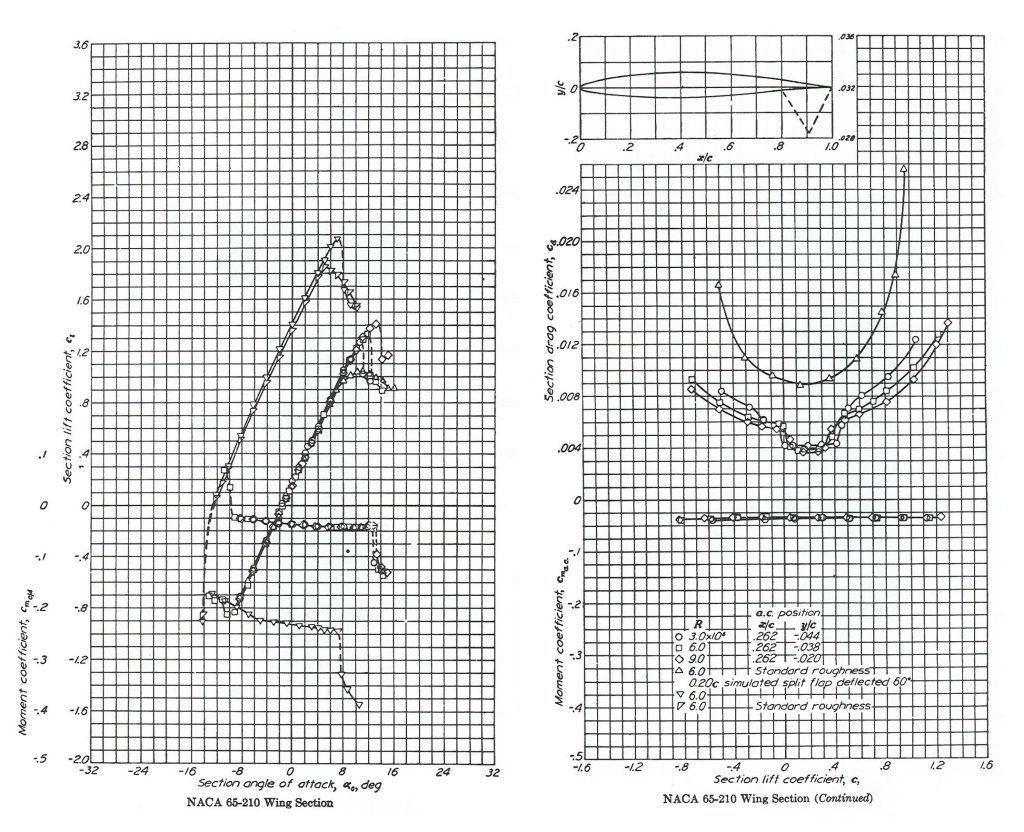

NACA 65-210 (6-Series NLF: Cambered)
References
- Computer Program to Obtain Ordinates for NACA Airfoils (NASA Technical Memorandum 4741), 1996
- NASA Supercritical Airfoils (NASA Technical Paper 2969), 1990
- Summary of Airfoil Data (NACA Report 824), 1945
